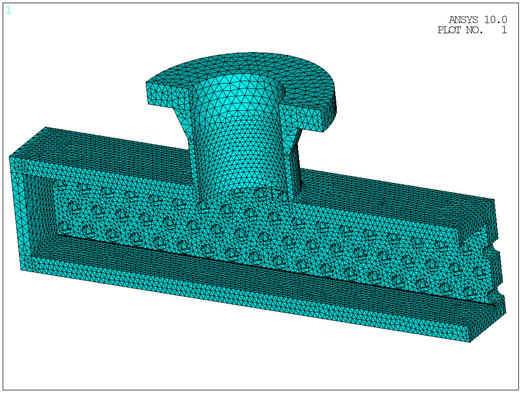

A linear elastic finite element stress analysis was performed on an air cooler header box to predict stresses at the nozzle/box interface. The structure was subject to internal pressure.

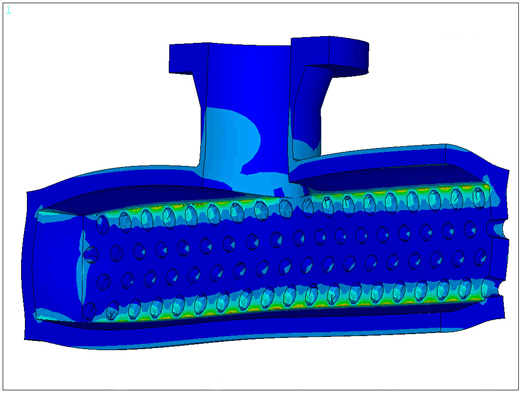

It was found that the stresses at the nozzle/box interface were very low. The highest stress was found at the inside corner of the long side of the box, on the nozzle side. All stresses were within allowable ASME stress levels.
