Suction Bottle

A finite element stress analysis of a suction bottle was performed using a 3D model.

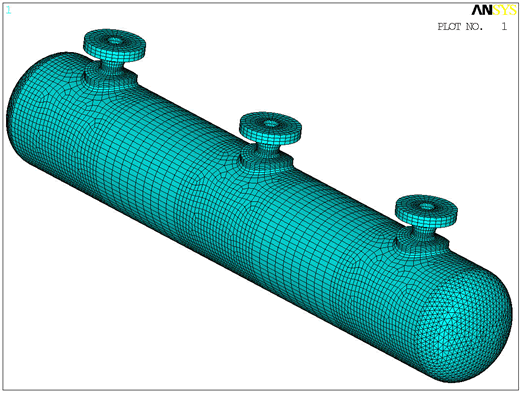

Finite element mesh of suction bottle

Applied displacements at the nozzle flange faces simulated the static installation and dynamic operating deflections. Combined with internal pressure, alternating stress intensities were simulated. The results were used to to predict the fatigue life and compare to actual operating experience.

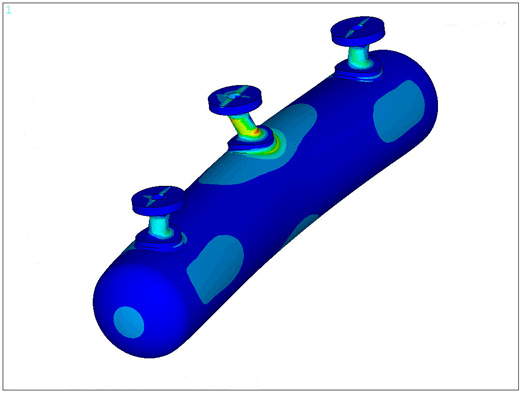

Stress intensity in the suction bottle

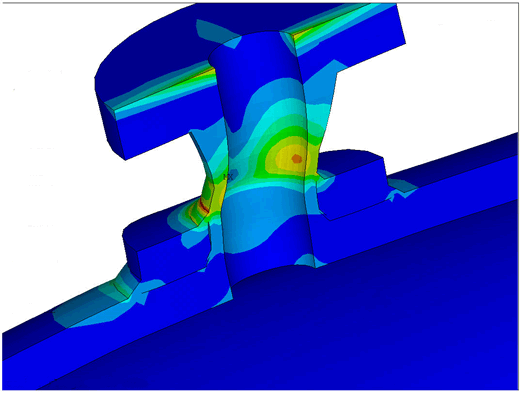

Stress intensity in the nozzle of suction bottle

The simulations led to changes in the design for improved operating lifespan.
